JAW CRUSHERS (click on photos for a larger image)

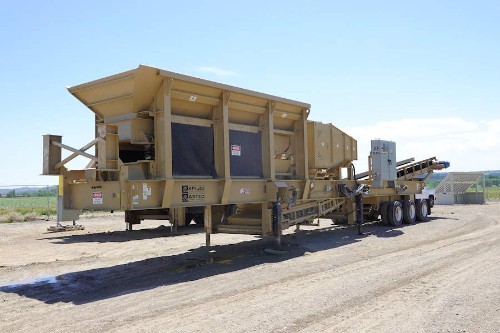

Astec 2650 portable Jaw plant

[Click] on above image for a larger view [

]

Pioneer Jaw Crusher - 26" x 50" feed opening
150 HP motor with guard and v-belt drive
Pioneer Vibrating Grizzly Feeder - 50" x 20"
40 HP electric motor and drive
3/4" feed hopper, 14 cubic yard capacity, 3/4" deck liners
Removable module for transport
Reverse Configuration with feeder over king pin
Fifth wheel main frame chassis
Triple axel suspension with air brakes
Twelve 11:00 x 22.5 dual-mounted bias-ply tires
Trailer light package
Extended Delivery Conveyor; Nominal 48" x 50'
Leveling jacks, Four (4) 5" x 24" stroke jacks (Run on)
Hydraulic Power Unit 8 HP (6 kW) gas powered unit
Electric Motor Controls
NEMA-12 panel box with remote panel board
Variable frequency drive for feeder
#400-78
