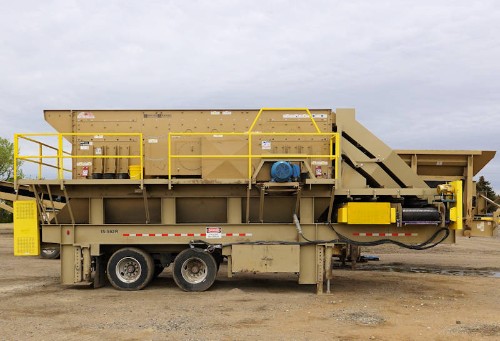

JCI Model 7203-38LP Portable Screen Plant

[Click] on above image for a larger view [

]

7' x 20' Horizontal Triple Deck
Variable speed drive, adjustable angle and stroke
Huck-bolted assembly
Discharge lips with 1/4" AR liners, bolt-on 24" feed box with 1/4" AR liners
Heavy duty rubber spring suspension with rubber surge snubbers
Triple shaft vibrating mechanism, fully contained oil lubrication system.
50 HP 1200 RPM, TEFC Toshiba drive motor with motor mount, drive and guard
48" x 24' Under screen discharge conveyor
Fold down walkways both sides of screen; Back platform, Handrails and Access Ladder
AR lined product discharge chute delivers top deck retained to front middle over end of frame
(2) 24" Cross Conveyors
Tandem axle carrier with 11:00 x 22.5 Tires on Budd wheels
Fifth wheel pin, Air Brakes and Lights
Off plant free standing switch gear with push buttons
#1600-92
