ASPHALT MISCELLANEOUS (click on photos for a larger image)

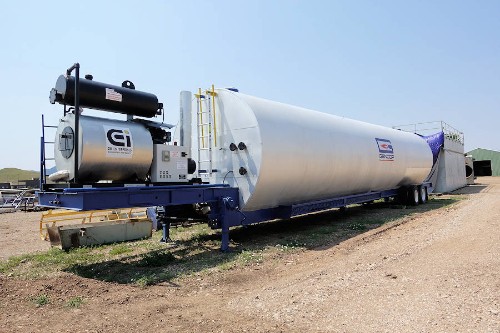

Gencor 30,000 Gallon Portable Split AC Tank

[Click] on above image for a larger view [

]

1998 Gencor 30,000 Gallon Portable Split Compartment A/C Tank
Two 15,000 Gal nominal capacity, Individually Plumbed A/C Compartments
Each Compartment includes:
Manway Access w/ new Covers; Sample Valve
Temperature Set-Point Sensor/Controller to control actuated hot oil piping valves
1995 Reconditioned CEI-1000 Hot Oil Heater w/ 1.2 MBTU/Hr rated output
Heater is mounted on Gooseneck but not plumbed
New Thermometers; new Hot Oil Circulating Pump; new Firebox Sight Glass for firebox;
New Control Panel with Alarm; new Fuel Supply System for Light Oil / Diesel w/ Fuel Pump;
New Lines, Fuel Filter & Nozzle.
Fully Insulated with Aluminum Skin; Brakes, Hubs, and Lights
Note: CEI replaced the model 1000 with the CEI-1200. This Hot Oil Heater has been rebuilt to conform to the new CEI-1200 specs with rated 1.2 MMBTU/hour output
#200-118
