FEEDERS (click on photos for a larger image)

Kafa Skid mount hopper

[Click] on above image for a larger view [

]

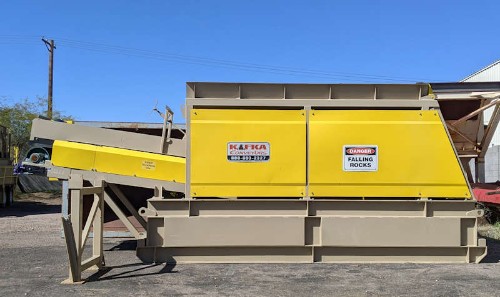

8' x 14' SKID MOUNTED HOPPER WITH 36"x 25' CONVEYOR
Hopper constructed of 5/16" plate with stiffeners
I Beam Skid
Conveyor Constructed with 8" Channel frame
Precision CEMA C 5" Idlers
Rubber discs
16" diameter lagged head pulley, 3 7/16" shaft
16" diameter wing tail pulley, 2 15/16" shaft
12" Top Angle take up
Dodge Type E Bearings
Dodge TA5215, 40:1 Shaft mounted reducer backstop
10hp Motor TEFC, 3/60/260 characteristics
VFD Controller
Belt 3/16" x 1/16"
Guards
Flexco Belt Wiper
Control Gate
Enclosed sides and back
Primed, painted beige
#1900-26

[Click] on above images for a larger view

View PDF Document
(Click link above to View PDF)
(To Save PDF file, right-click on the link to the PDF document, 'Save target as...' and then save to your hard disk)
